Hydraulic Rigs/Guns

Hydraulic Rigs

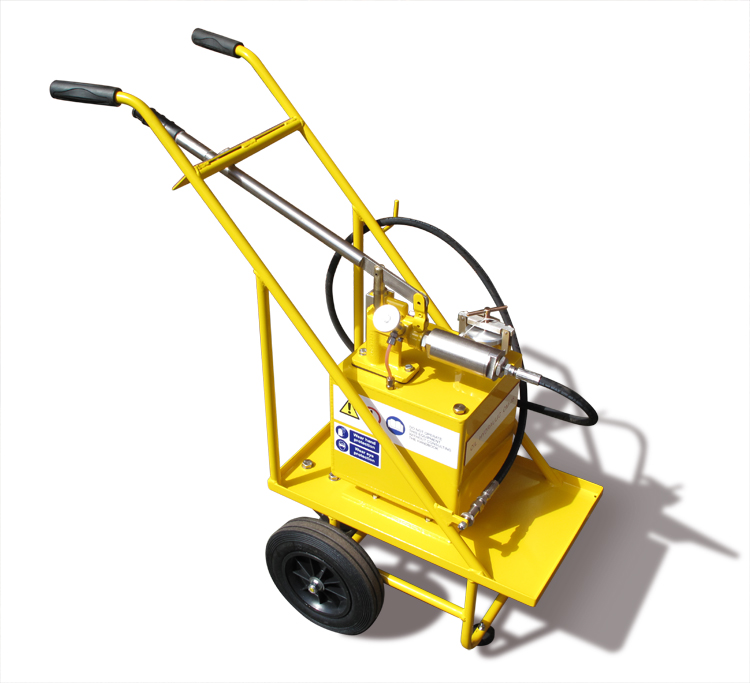

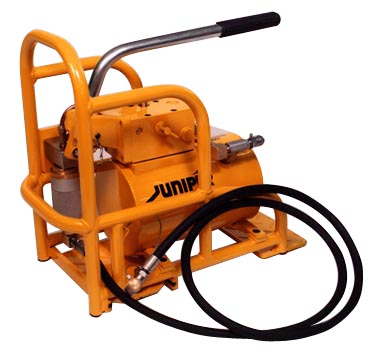

The 5.3 litre hydraulic rig (JMP/MKV1/D/1266) has a capacity of 5.3 litres, develops pressure up to 200 bar (3000 psi) and has a filtration of 2 micron absolute. The Kit Oleo hydraulic rig (JMP/HYD/D/1326), with a capacity of 11 litres, develops up to 75 bar (1100 psi) and has a 5 micron filter fitted.

Purging Rig

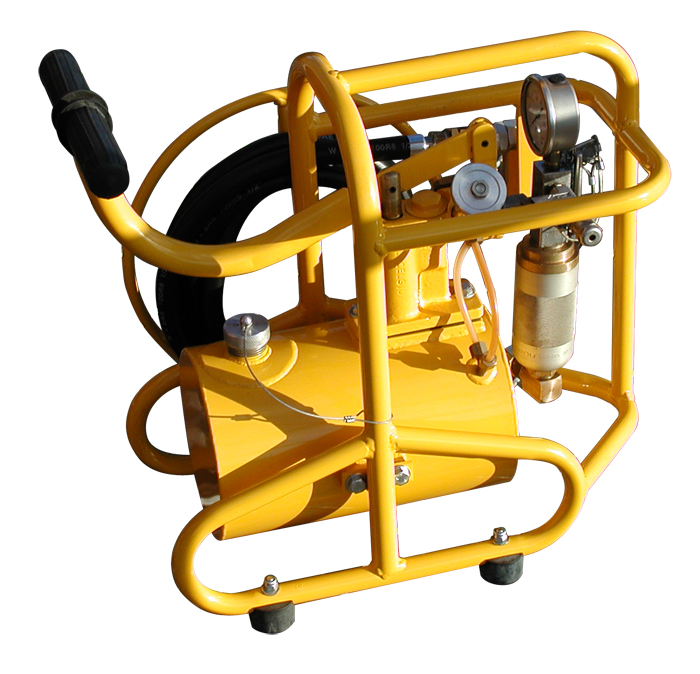

The hand operated hydraulic purging rig is a hand portable unit which is used to purge/charge aircraft hydraulic systems. The maximum output pressure of the unit is fully adjustable up to 110 bar (1600 lbf/in), adjustment being carried out by the use of replaceable springs installed in the pressure relief valve.

Hydraulic Charging Gun

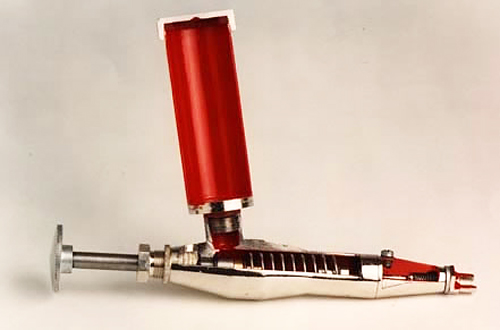

A range of guns are available for charging high pressure hydraulic systems. The guns vary in pressure and pressurisation mechanisms. The maximum pressure varies from 2,000 to 10,000 lbf/sq.in. (140 to 700 kg/sq.cm.). The pressurisation mechanism can be either a plunger or a trigger action. The capacity delivered varies with pressure.

A wide range of fluid types and viscosities can be dispensed.
